Model No.: SY-REX20、32、43、58、72、77、92、112
  Screw diameter: 20mm、32mm、43mm、58mm、72mm、77mm、92mm、112mm
  Applications:

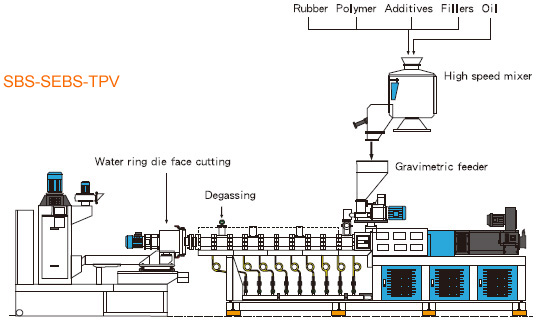

PP、EVA、SBS、SEBS、TPR、TPE、TPV、TPO、TPU
..............................................................................................................................................................................................................................Top
  Model No.: SY-REX20、32、43、58、72、77、92、112
  Screw diameter: 20mm、32mm、43mm、58mm、72mm、77mm、92mm、112mm
  Applications:

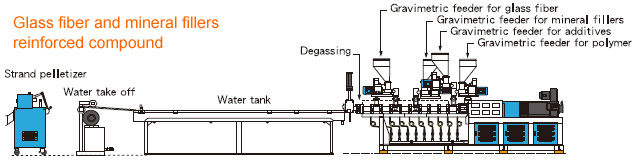

PP、PE、PS、PC、PET、PBT、POM、PMMA、PA、PPE(PPO)、ABS、AS、PC/ABS、TPR、TPE PP、PA、PC、PBT、ABS + GF、PP + CACO3、 PP + TALC、 PP + TIO2

...................................................................................................................................................................................................................................
  Model No.:
SY-ASF ---- Single screw
SY-ATF ---- Twin screw
  Features:
Continuity, efficiency, accuracy of the production line is the pursuit objectives of enterprise.

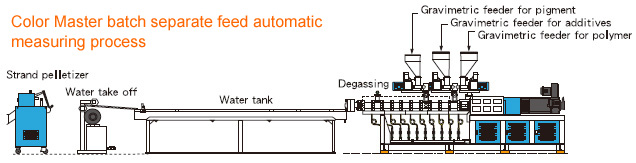

Automatic measurement system can process the continuous precise measurement of the ratio of the raw material, to achieve high precision, high-quality purposes. And can avoid the mistakes of artificial ingredients
are there.
..............................................................................................................................................................................................................................Top
  Model No.: SY-REX20、32、43、58、72、77、92、112
  Screw diameter:
20mm、32mm、43mm、58mm、72mm、77mm、92mm、112mm

Applications:

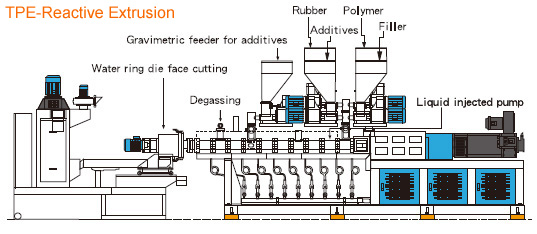

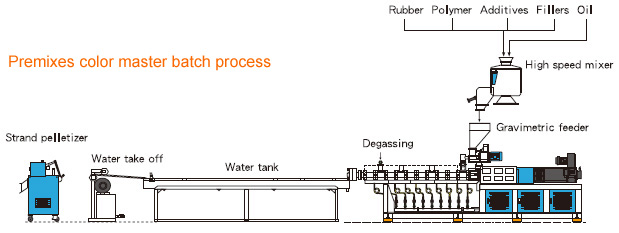

Functional master batch、 high concentrate master batch、white & black master batch、filling & modified、blending & modified、glass fiber & carbon fiber reinforcement、reactive extrusion、polymerization、homogenization。
Model No.: SY-TFD
Screw diameter:
35mm、 50mm、63mm
Model No.: SY-TSF
Capacity from: 50-850 Kg/hr
  .........................................................................................................................................................................................................................
  Twin screw extruder design features:
1. Screw: Both screw running at the same direction, using the principle of building-block design, with good
 dispersion and mixing effects; also can control the raw material retention time inside the barrel. It can be
 different according to different combinations of arrangement. Take full advantage of the multi-function,
 multi-purpose, specific and other features.
2. Screw element: Excellent closely intermeshed, interchangeable, self-cleaning function.
3. Barrel (Block): Divided into closed, vent degassing, vacuum degassing, side feeder, liquid injected hole,
  water spray hole.
4. Transmission system:
A. Gear Box: using our own design of high precision, high speed, and high torque gear box. Gear Box adapts
  cooling method of enforced lubrication to cool gear and bearing lubrication. Smooth running at high speed
  without vibration, and no noise, longer gear and bearing life.
B. Torque limiter: high-speed operation, it can protect the gear box and the screw will not damage due to
  sudden and unexpected when high-speed operation.

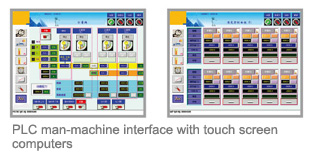

5. PLC man-machine interface with touch screen computers.
6. Adapt high efficiency AC motor + inverter.
  ....................................................................................................................................................................................................................Top


˙Screw element

˙Barrel


˙Shaft &Screw element

Opened-type barrel, Shaft, Screw element
  .........................................................................................................................................................................................................................
  Technical data of REX series segmented Co-Rotating twin screw extruder:


Model

Screw Dia.

Channel depth

L/D

N-M/Screw

Screw speed

Driving Motor

SY-REX20

20 mm

3.4 mm

32-40

59 / Per shaft

600 rpm

7.5 HP

SY-REX32

32 mm

5.8 mm

32-40

110 / Per shaft

600 rpm

30HP

SY-REX43

43 mm

7.4 mm

32-48

544 / Per shaft

600 rpm

75HP

SY-REX58

58 mm

10 mm

32-48

1425 / Per shaft

600 rpm

175HP

SY-REX72

72 mm

13.5 mm

32-48

2672 / Per shaft

600 rpm

300HP

SY-REX92

92 mm

16.5 mm

32-48

5443 / Per shaft

600 rpm

500-700HP

SY-REX112

112 mm

22 mm

32-48

110 / Per shaft

600 rpm

600-1000HP


Reference output (KGS. / Per Hour) of REX series segmented twin screw compounding extruder:

Screw Diameter

20 mm

32 mm

43 mm

58 mm

72 mm

77 mm

92mm

112 mm

White& black Pigments
PP、PE、PS、PA、PET、ABS、AS

8-35

15-60

60-180

150-350

300-700

350-800

600-1200

850-1700

Organic master batch
ABS, AS, PS, PP, PE, PC, PET, PBT, EVA

6-18

10-30

60-100

200-300

250-350

300-400

600-800

850-1700

Filling $ modified
ABS, AS, PS, PP, PE, PC, PET, PBT, EVA

12-30

20-50

110-150

250-350

400-600

450-850

900-1200

1600-2200

Reinforced GF & carbon fiber
PP, PE, EVA+caco3, Tio2, Talc
PP, PA, ABS + Fee, Ceramic powder

12-30

20-50

120-220

400-700

800-1200

900-1300

1400-1800

2000-250

Reinforced GF & carbon fiber
PP, PA, PC, PBT, PET, POM, ABS, AS

12-25

20-40

90-180

280-450

500-700

550-750

700-950

1200-1700

Reaction extruding
TPU, organic matter reaction

6-18

10-30

60-100

100-150

250-350

300-400

500-700

700-900

Polymers Alloy
PC/ABS, PC/PBT, PBT/PET, PP/PE

8-25

15-40

100-150

300-400

500-700

550-750

700-950

1200-1700

Thermoplastic Elastomers
SBS, SEBS, TPR, TPE, TPV, TPO

8-30

15-50

60-200

130-400

400-800

450-850

700-1300

1500-2350

..............................................................................................................................................................................................................................Top
  Processing of organic filler & mineral filler、flame retardant、alloy compound
  .........................................................................................................................................................................................................................
  .........................................................................................................................................................................................................................
